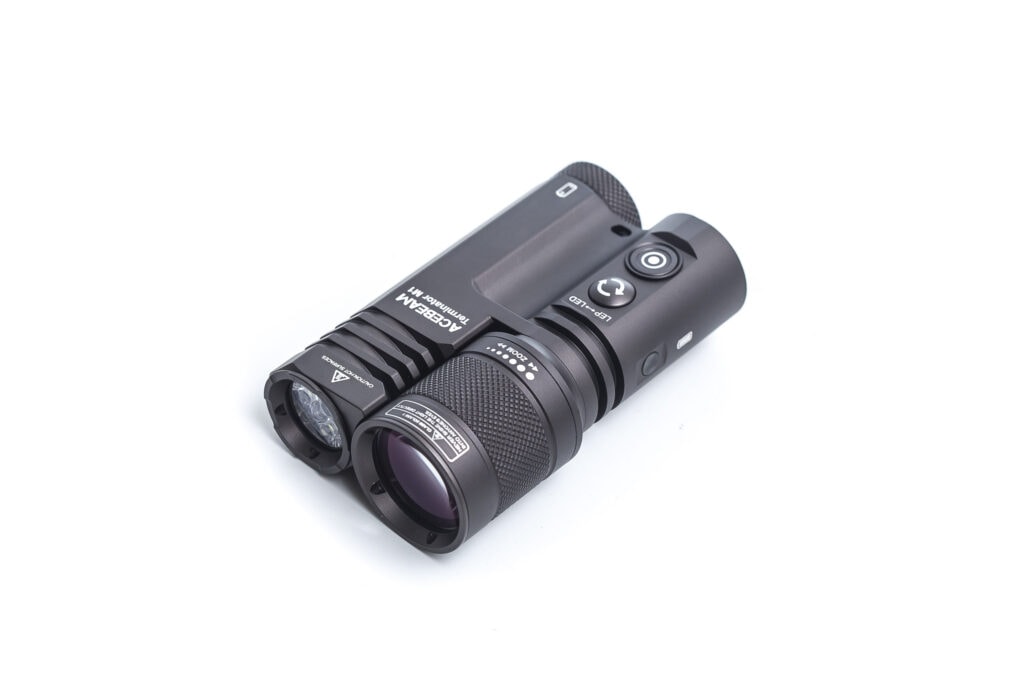

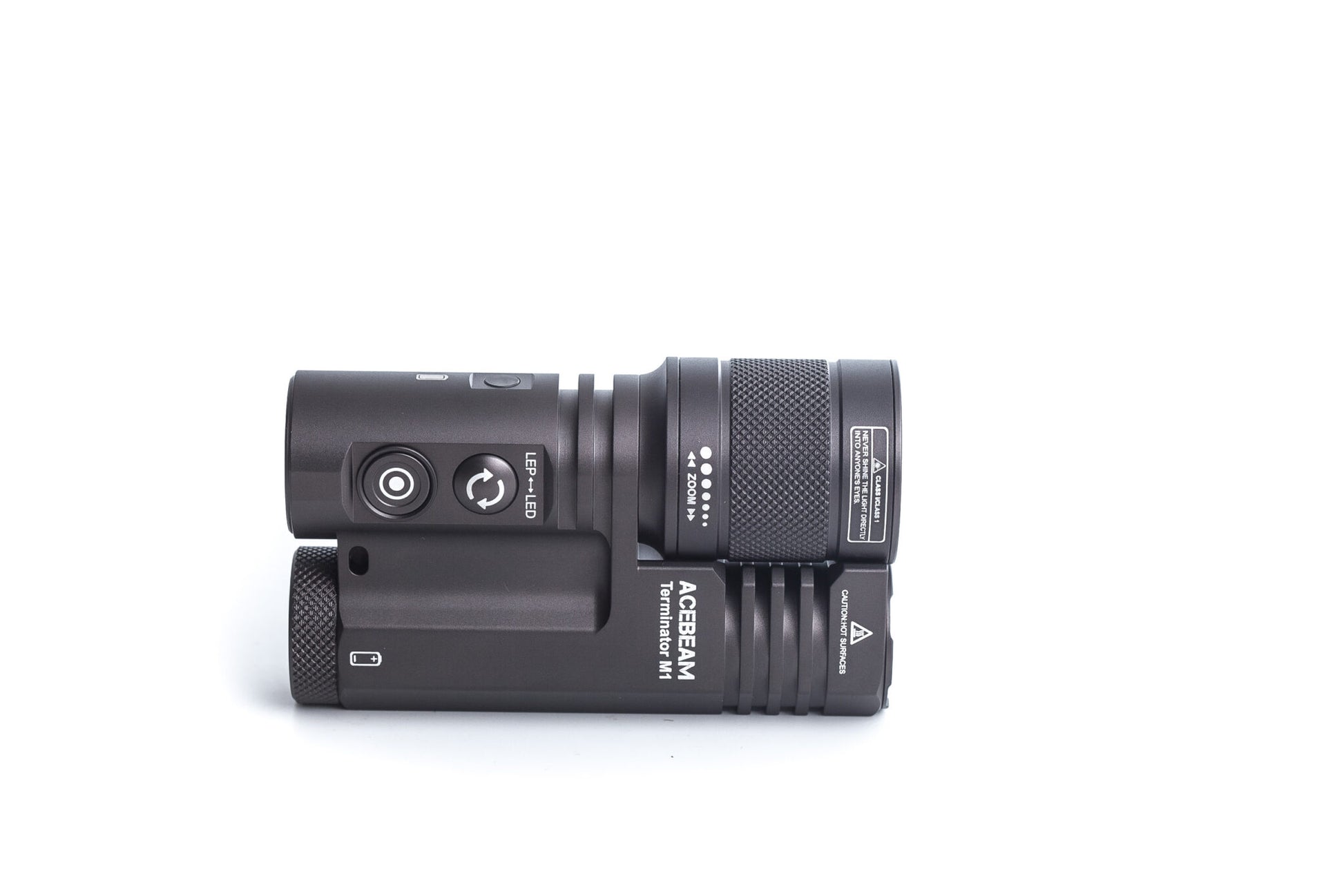

Acebeam Terminator M1

Power Switch Operation:

ON: Simply click the Power Switch to activate the device.

OFF: While the device is ON, clicking the Power Switch will turn it OFF.

Output Selection:
Activate the LED light source option, then press and hold the Power Switch. The LED light will cycle through Low, Medium1, Medium2, and High settings. Release the Power Switch to select the desired output, and the choice will be memorized for the next activation.

Turbo:
In the Unlocked state under the LED light source option, perform a quick double-click of the Power Switch to access Turbo output. Another double-click will toggle between Turbo and memory output.

Strobe:
Similarly, in the Unlocked state under the LED light source option, quickly press the Power Switch three times to initiate the Strobe output.

Ultra-low:
When the flashlight is OFF and under the LED light source option, press and hold the Power Switch to enter the Ultra-low output. Note that Ultra-low, Strobe, and Turbo modes won't be memorized.

Lock/Unlock:

Lock: With the light OFF, press and hold the Power Switch for 3 seconds. The current light source will flash three times, indicating the flashlight is now Locked. No switch operations will be effective during this state.

Unlock: To release the Lock, press and hold the Power Switch for 3 seconds while the light is Locked. The current light source will flash three times, and the light will be Unlocked. If the light source is LED, it will be Ultra-low ON when unlocked. For LEP, the light will be LEP ON when unlocked.

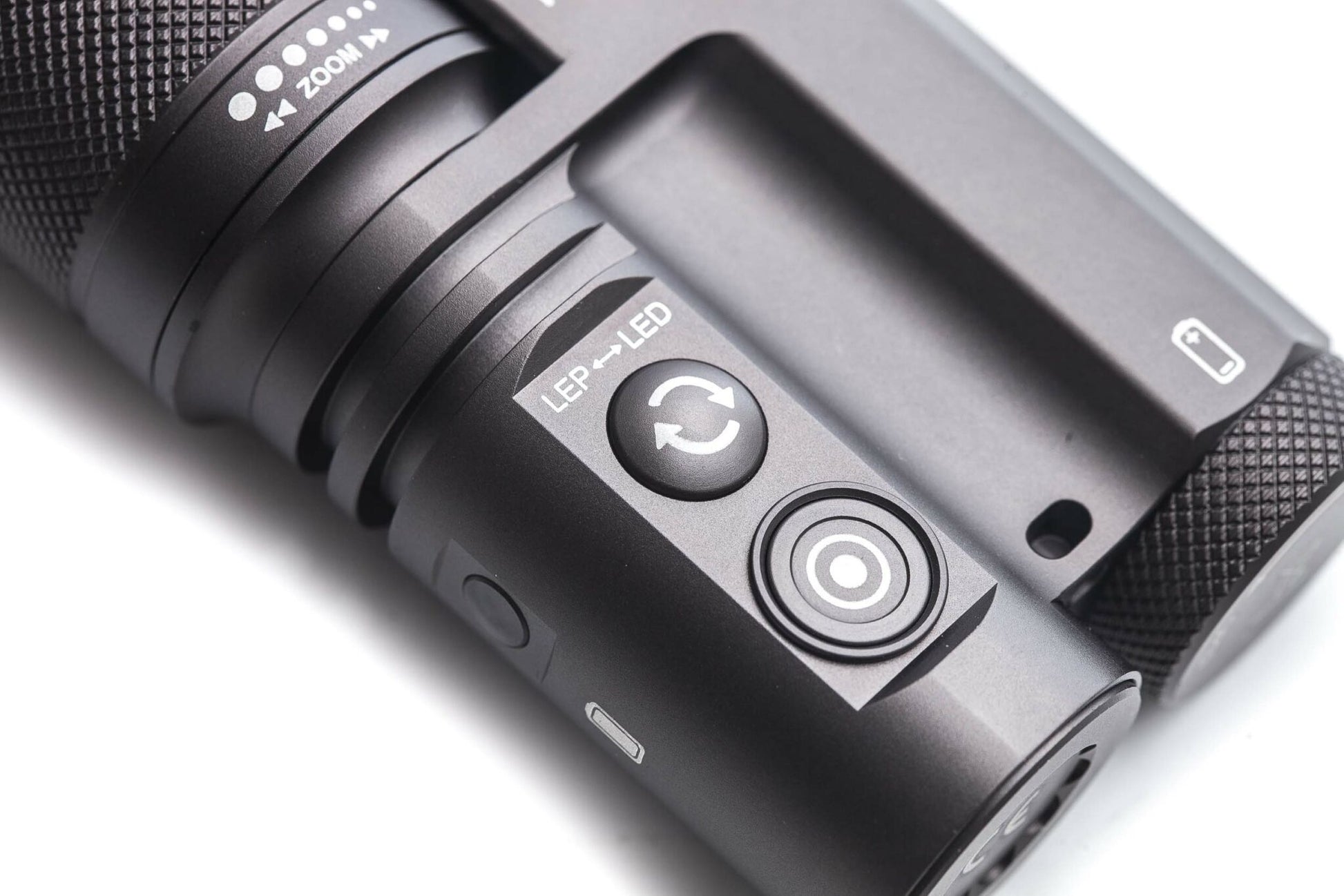

Function Switch Operation:
While the light is ON, clicking the Function Switch alternates between the LEP and LED light source options.

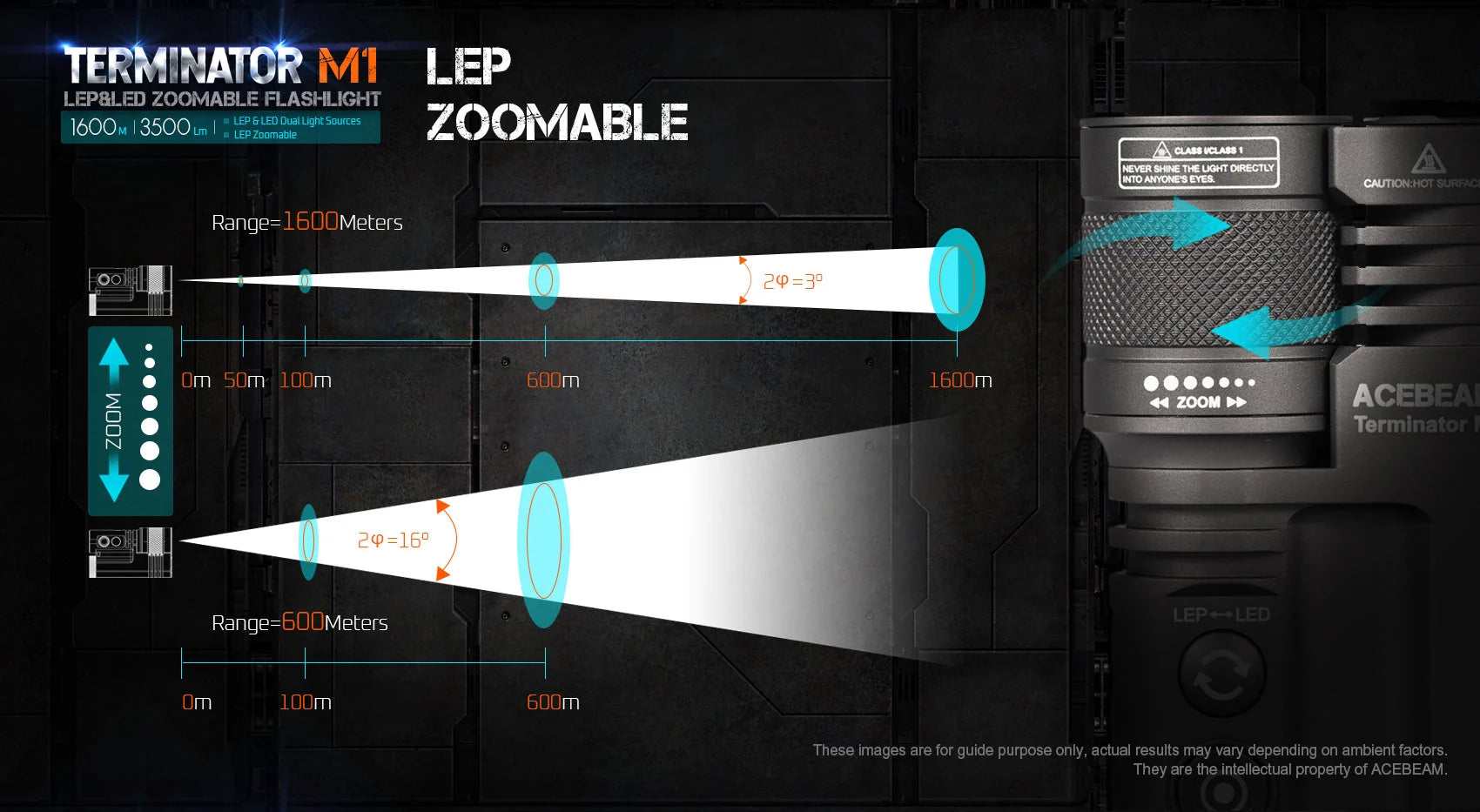

LEP Zoom Operation:
When the LEP light source is ON, rotate the LEP head either left or right to uniformly adjust the LEP beam angle between 16° and 3°.

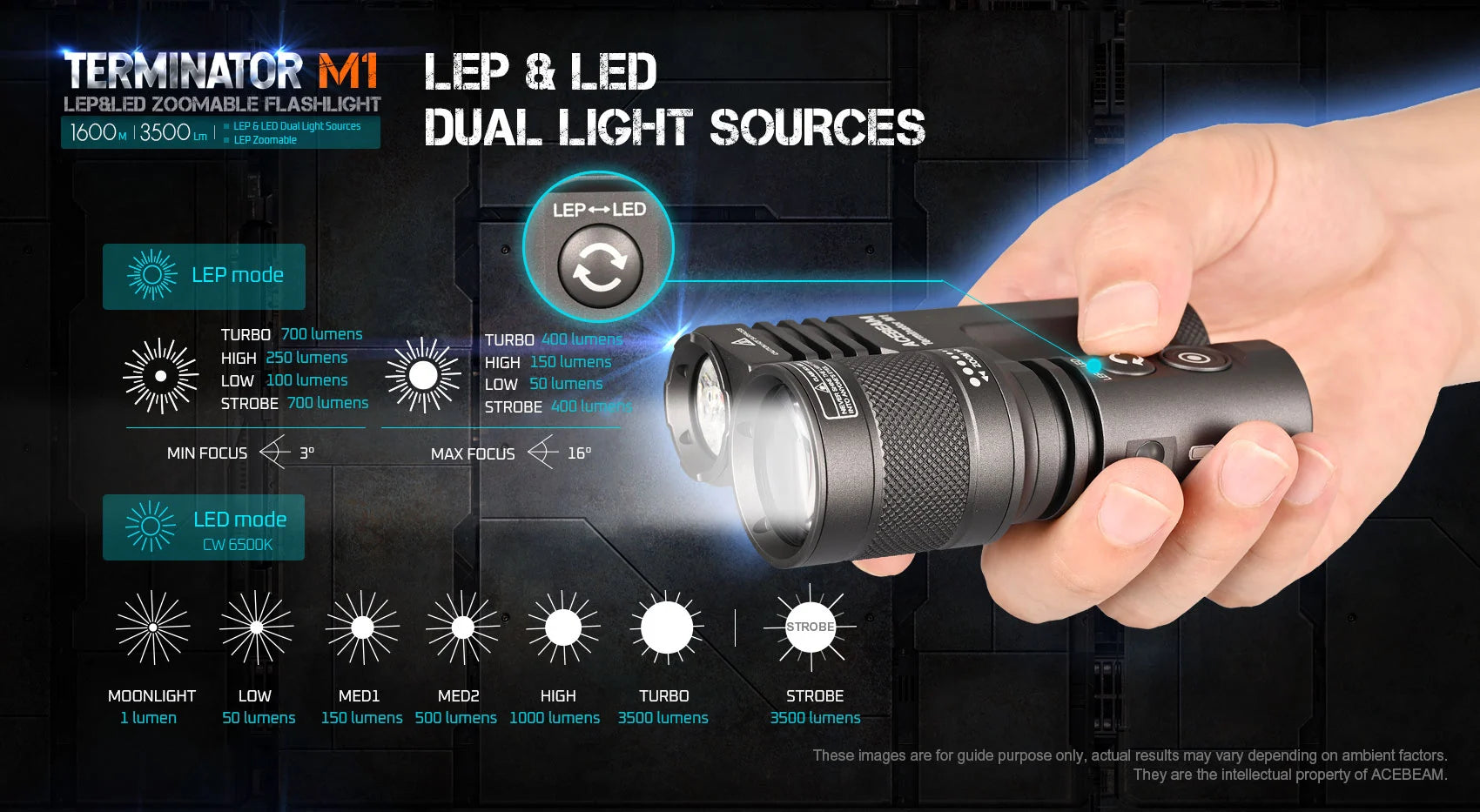

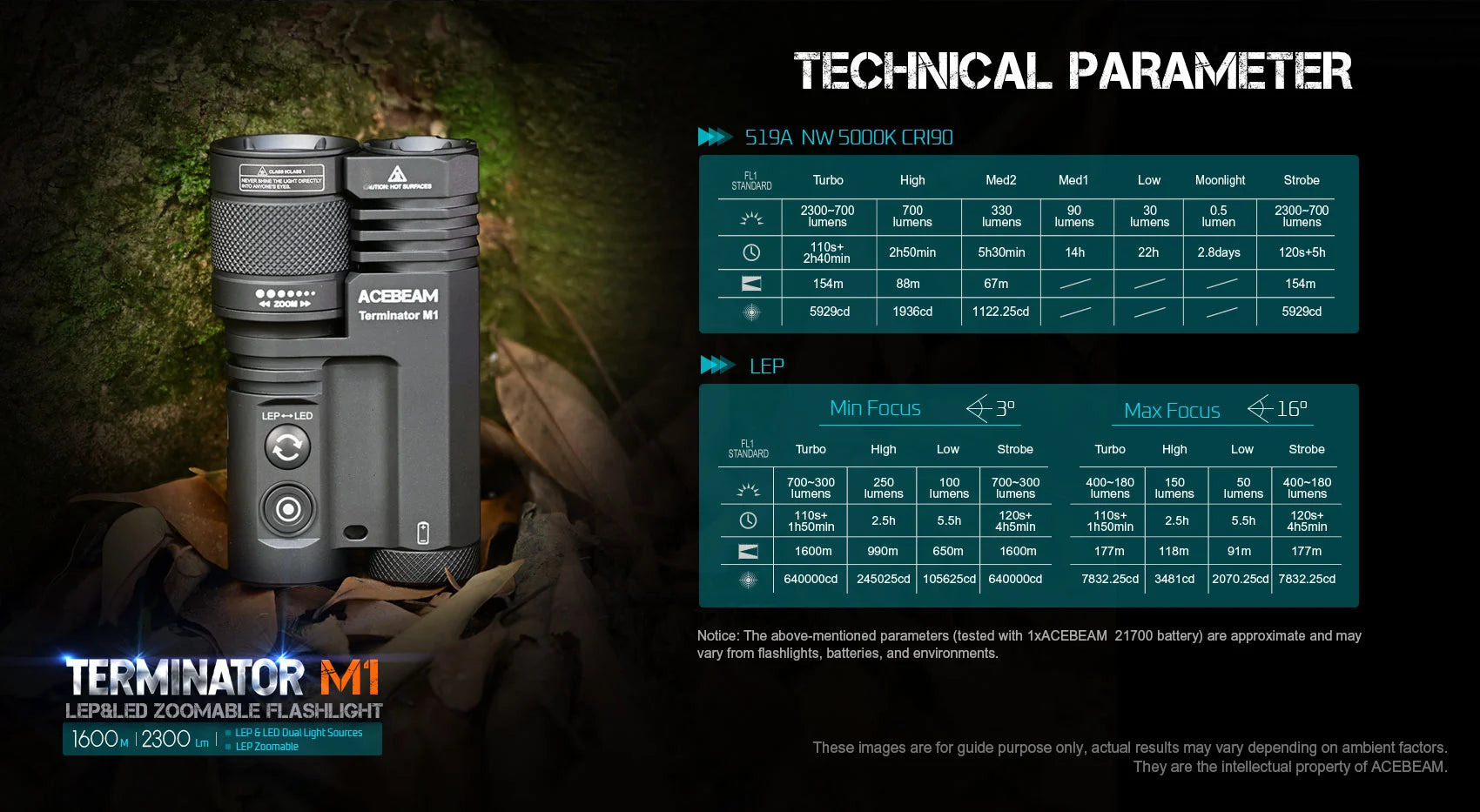

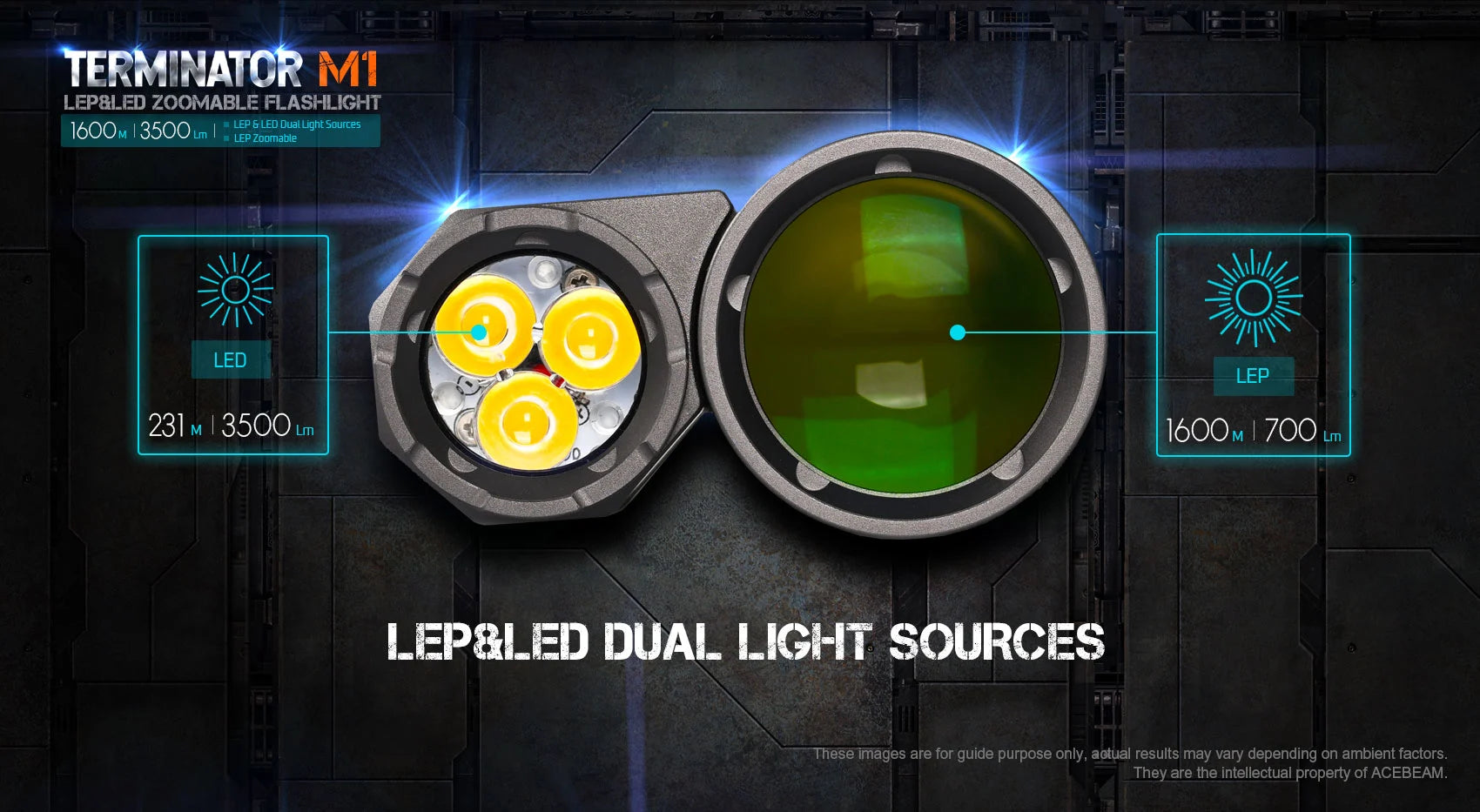

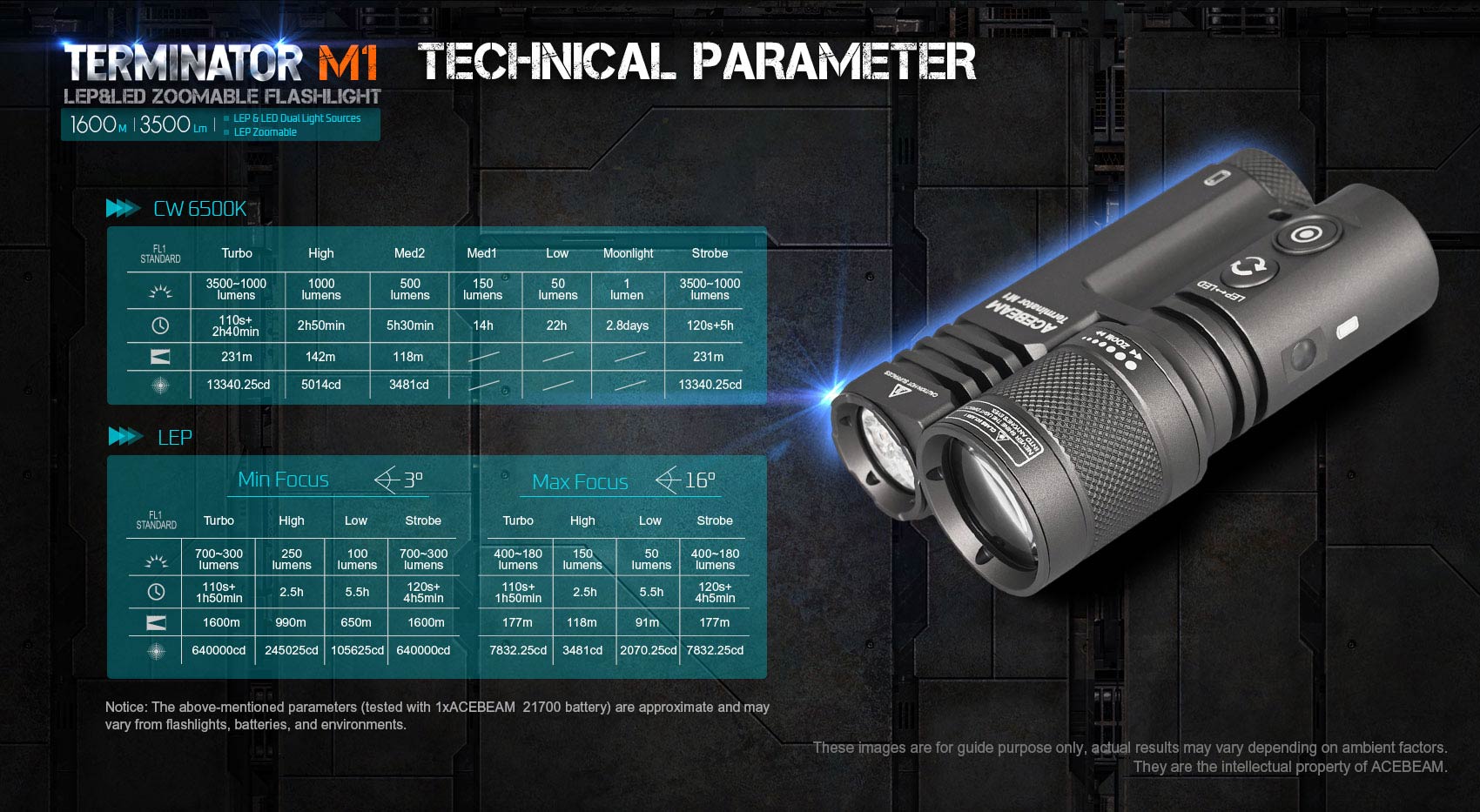

Dual Light Source: Combines 1x LEP (Laser Excited Phosphor) with 3x LEDs (Cool White 6500K / Nichia 519A 5000K High CRI90 for options).

Internal Zoom Design: LEP source features an internal zoom design, allowing for easy focus adjustment by rotating the LEP head without changing size.

Beam Angle: Adjustable from 3~16° for versatile lighting options.

Max Output: LED: 3500 lumens; LEP: 700 lumens.

Max Throw: LEP: 1600 meters (640,000cd); LED: 231 meters (13,340cd).

Impact Resistance: Withstands impacts of up to 1 meter.

Waterproof: IP68 rating, submersible up to 2 meters.

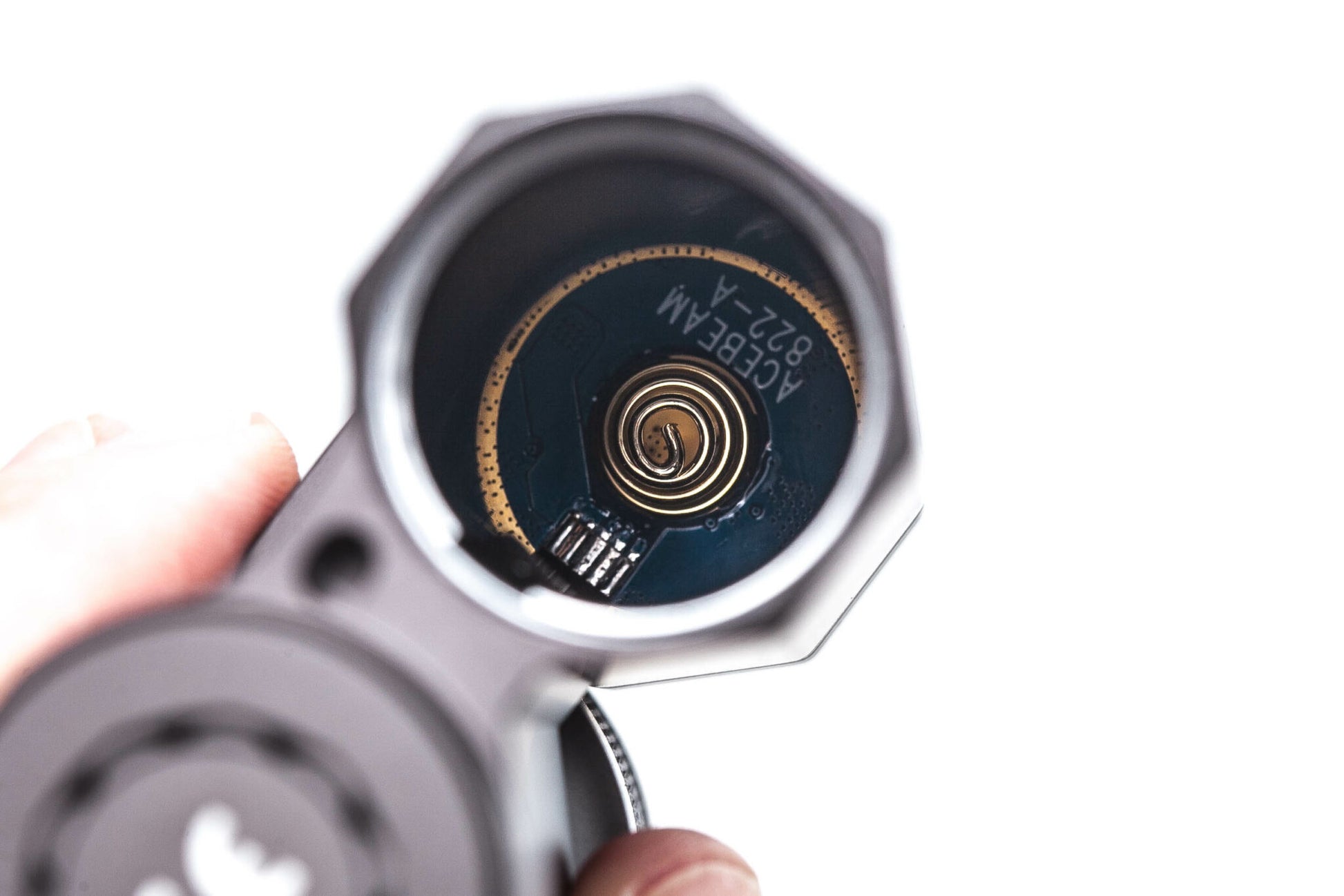

Battery: Powered by 1x ACEBEAM USB-C Rechargeable 21700 Li-ion Battery.

Power Switch: ON/OFF and output modes cycle for easy operation.

Function Switch: Allows seamless switching between LEP and LED modes.

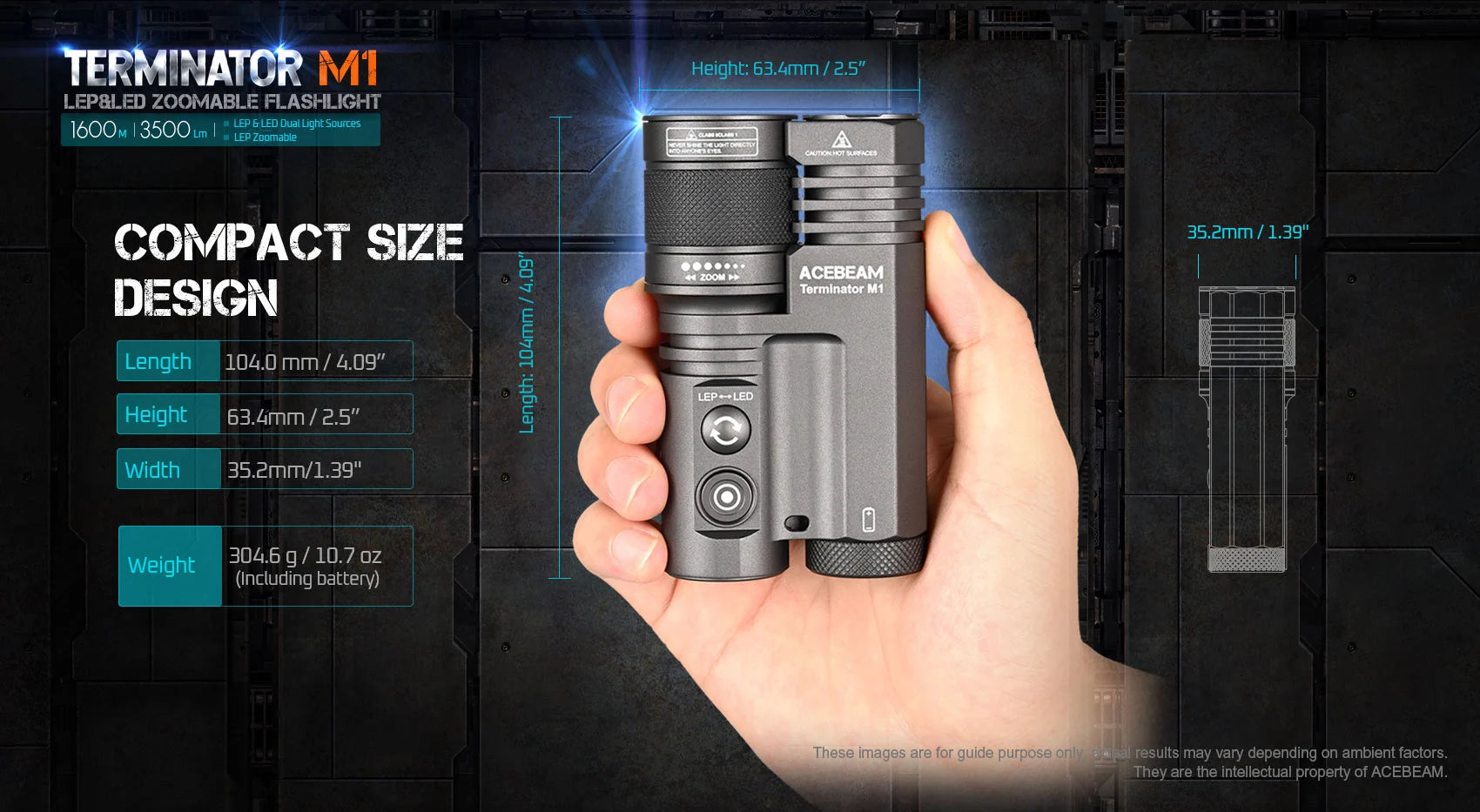

Dimensions: Compact size at 104 x 35.2 x 63.4 mm.

Weight: 232.2g (Excluding Battery) / 304.6g (Including Battery).

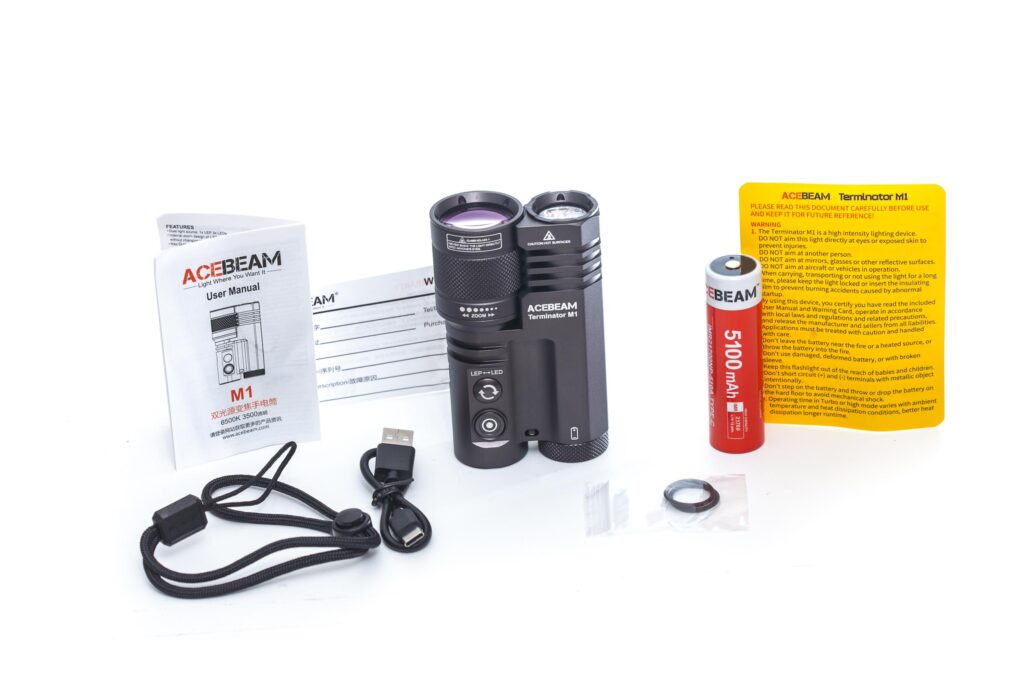

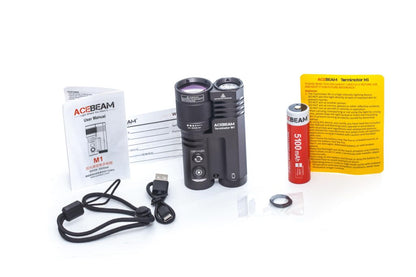

1 x Terminator M1

1 x 21700 USB-C Rechargeable 5100mAh Li-ion Battery

1 x USB-C Charging Cable

1 x Wrist lanyard

2 x Spare O-rings

NA

Keep in a cool and dry area.
